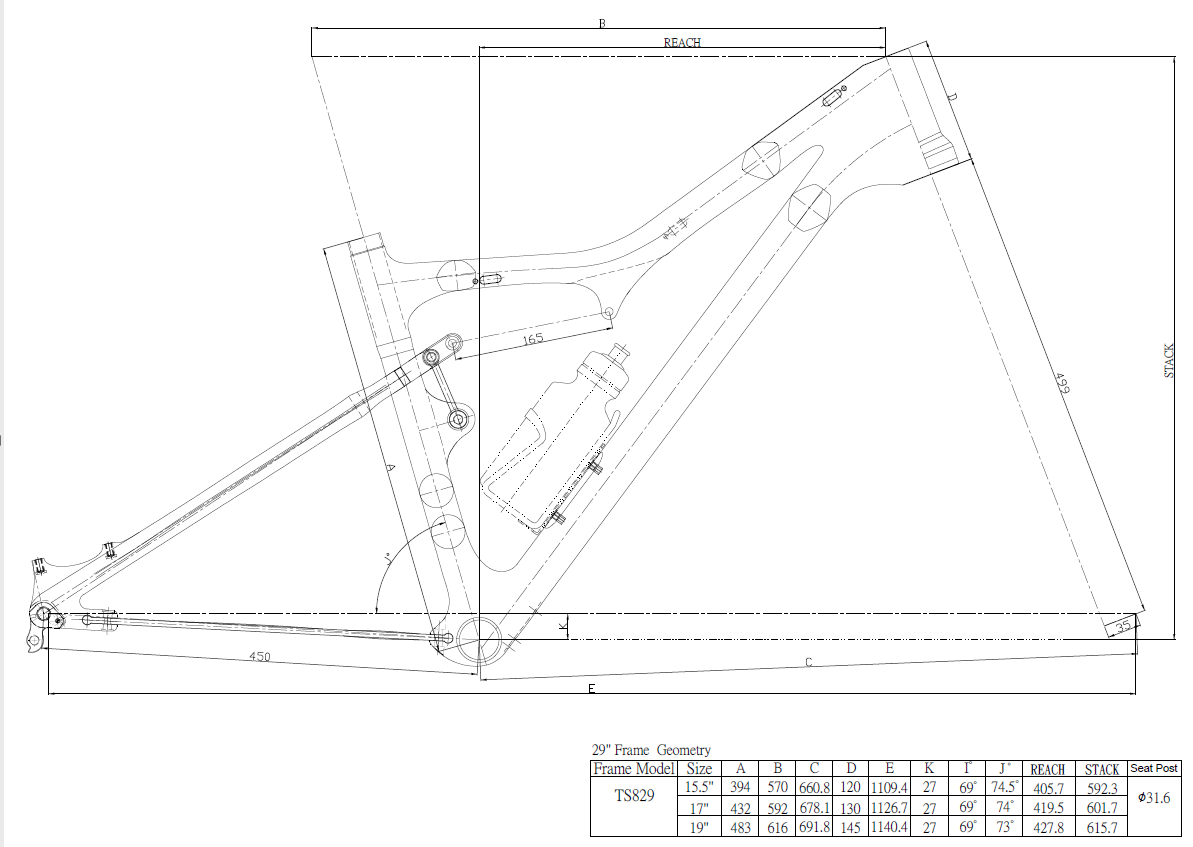

• TS829


Full carbon monocoque 29er frame with dual suspension system increasing handling and ride comfort.
Tapered head tube design for improving safety, handling and stiffness and oversized tubing for increasing
stiffness durability and ride comfort. Oversized BB design creates greater stiffness and more efficient power
transfer. Patented chain stay design allows extra comfort and control.
• Size : 15" / 17" / 19"
• Head Tube : 11 / 8"-1.5" Tapered
• BB Shell : Shimano BB92
• Optional : Shimano Rear E-Thru system
Q12, Post mount disc with rotor 160mm,
135mm / 142mm OLD
• Shock Travel 38mm, End Travel 45mm
• Weight : 1530g (size C-T 17")
